Document Flow Routing by Verb

Hi,

I was doing some exercises with document flows and I'm curious if it's possible to route a document based on the BOD's verb.

Let me give you an example:

I have an SFTP that send both Sync and Process BODs for ItemMaster, but one of the target activities requires a SyncItemMaster, while the other must work with a ProcessItemMaster.

So what should be the correct way to proceed? Is it even possible to route documents based on the BOD's verb?

Find more posts tagged with

ION Connect

Accepted answers

Maxime Richard

Hello,

Unless i am wrong, you can't. Then 2 solutions:

1) 2 different data flows

2) 1 data flow with a python script before your routing activity that will:

- read the XML and get the root element

- compare it to SyncItemMaster or ProcessItemMaster and add a custom_Field1 header property (that you must add in the data catalog) with value 'Sync' or 'Process' for example:

In your routing activity, tab 'Attributes', get property 'Custom_Field1' from Header and test its value. You are now able to route based on 'Sync' or 'Process'

All comments

Maxime Richard

Hello,

Unless i am wrong, you can't. Then 2 solutions:

1) 2 different data flows

2) 1 data flow with a python script before your routing activity that will:

- read the XML and get the root element

- compare it to SyncItemMaster or ProcessItemMaster and add a custom_Field1 header property (that you must add in the data catalog) with value 'Sync' or 'Process' for example:

In your routing activity, tab 'Attributes', get property 'Custom_Field1' from Header and test its value. You are now able to route based on 'Sync' or 'Process'

Christian Novoa

Thanks I'll try it!

Roy Es van

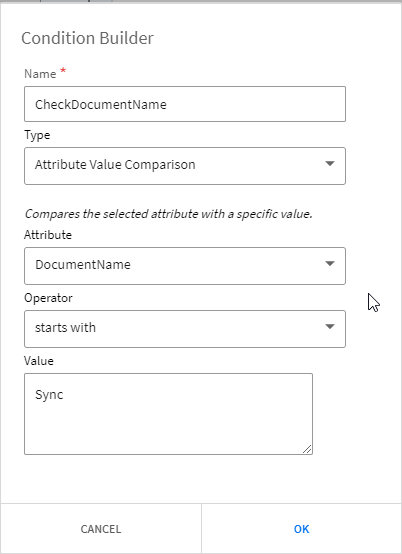

Yes you can using routing functionality. Add a header attribute DocumentName and then add a condition like this

Christiaan Rentier

Hi. The Routing activity does not show or allow the option to select a specific Verb, only the Noun. The input documents are not allowed to have different Verb for same Noun. Due to which you preferably have to create a data flow per Verb. Another option (not advised) is to wrap the BOD in a different BOD with only one Verb, which makes it unnecessary complex.

Christian Novoa

Indeed, after testing it, the best approach is to have two separate data flows and each handling a specific verb. Thanks for the insight!
