Possibility to call IPS (Webservices in M3 CE) through a document flow/ workflow

Hi,

I have created IPS (Webservices in M3CE). I need to call it through a workflow/document flow and also need to create a connection point (Which may be ion api connection point) for that.

My workflow will be triggered when my CMS045/ CMS047 event is triggered and CMS045/ CMS047 set up is working perfectly. I have checked Process Workflow BOD can be seen generated. I have also activated PulseAlert BOD.

IPS is a SOAP payload present in ion api and I could not find much information on that calling through ION.

Has anybody worked on such kind of requirement.

This is my first task of ION. Appreciate any help.

Thank you

Find more posts tagged with

Accepted answers

All comments

Maxime Richard

Hello,

Copy/paste the body you see when testing your API in ION API. It's a SOAP xml file.

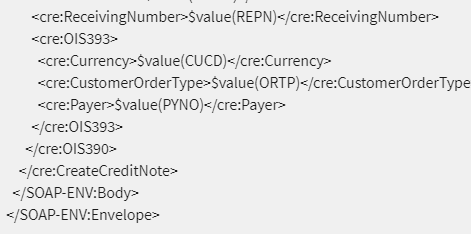

Replace dynamic parameters (which should be inputs from your workflow) by pressing CRTL+space and by selecting parameters accordingly. You shloud see that the parameter is enclosed in $value()

Can you try this ?

Legacy Contributor

Hi Maxime,

Thank you.

I did copy/ paste the xml which i get when i test it in IPS.

Pasted in ion api.

<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<SOAP-ENV:Envelope xmlns:SOAP-ENV="">schemas.xmlsoap.org/.../" xmlns:upd="">schemas.infor.com/.../UpdateStartdate">
<SOAP-ENV:Header/>
<SOAP-ENV:Body>
<upd:UpdateStartdateResponse>
<upd:MOS390>
<upd:StartDate>200829</upd:StartDate>
</upd:MOS390>
</upd:UpdateStartdateResponse>
</SOAP-ENV:Body>
</SOAP-ENV:Envelope>

Got a error code 500 response

<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<SOAP-ENV:Envelope xmlns:SOAP-ENV="">schemas.xmlsoap.org/.../">
<SOAP-ENV:Header/>
<SOAP-ENV:Body>
<SOAP-ENV:Fault>
<faultcode>SOAP-ENV:Client</faultcode>
<faultstring>Missing Credentials namespace in SOAP message.</faultstring>
</SOAP-ENV:Fault>
</SOAP-ENV:Body>
</SOAP-ENV:Envelope>

Maxime Richard

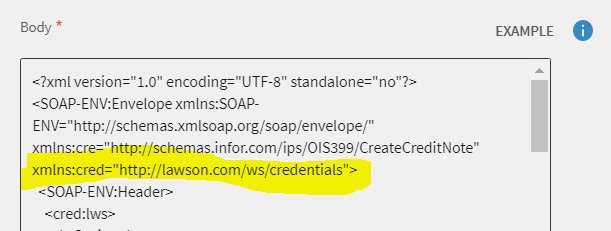

Can you add the following namespace xmlns:cred like below ?

Legacy Contributor

Hi Maxime,

This is the input I gave now in the Request body of ion api. and got the response code 200 as below

<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<SOAP-ENV:Envelope xmlns:SOAP-ENV="">schemas.xmlsoap.org/.../" xmlns:cred="">lawson.com/.../credentials" xmlns:upd="">schemas.infor.com/.../UpdateStartdate">
<SOAP-ENV:Header>
<cred:lws>

<cred:company>001</cred:company>

<cred:division>090</cred:division>
</cred:lws>
</SOAP-ENV:Header>
<SOAP-ENV:Body>
<upd:UpdateStartdate>
<upd:MOS390>
<upd:PanelSequence>E</upd:PanelSequence>
<upd:Option>2</upd:Option>
<upd:ItemNumber>5.1002.0031.1</upd:ItemNumber>
<upd:SerialNumber>TEST1</upd:SerialNumber>
<upd:SequenceNumber>0</upd:SequenceNumber>
<upd:WarrantyDate>201031</upd:WarrantyDate>

<upd:StartDate></upd:StartDate>
</upd:MOS390>
</upd:UpdateStartdate>
</SOAP-ENV:Body>
</SOAP-ENV:Envelope>

and got the response code 200

<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<SOAP-ENV:Envelope xmlns:SOAP-ENV="">schemas.xmlsoap.org/.../" xmlns:upd="">schemas.infor.com/.../UpdateStartdate">
<SOAP-ENV:Header/>
<SOAP-ENV:Body>
<upd:UpdateStartdateResponse>
<upd:MOS390>
<upd:StartDate>200829</upd:StartDate>
</upd:MOS390>
</upd:UpdateStartdateResponse>
</SOAP-ENV:Body>
</SOAP-ENV:Envelope>
