Need Help with a Script that will return only one , the one with the latest EndDt.

Hello Community,

I am prepping a BOD to be processed as a Sync.AssetMeterReading BOD. However, there are too many occurrences of meter readings for each asset. I am trying to get rid of all excess readings except for the one with the latest End Date. Or, if it is easier, the last reading for each asset. Scripting is new to me and I was wondering if someone could provide me with some sample script codes that can remove the unwanted readings. Within my <DataPacket>, I have a <sysreport> that contain my assets. Each asset may have anywhere from 1 to 20 readings within the <reportdata>. I just need the last reportdata or the reportdata with the latest <EndDt>.

Right Now, I have a Data Flow splitter that split them at the <asset_number> level. So, that may be easier to have the script execute when the assets are within their own BOD. But, I don't know how to write that script to give me the last reportdata only.

Any assistance would be greatly appreciated.

Thank you.

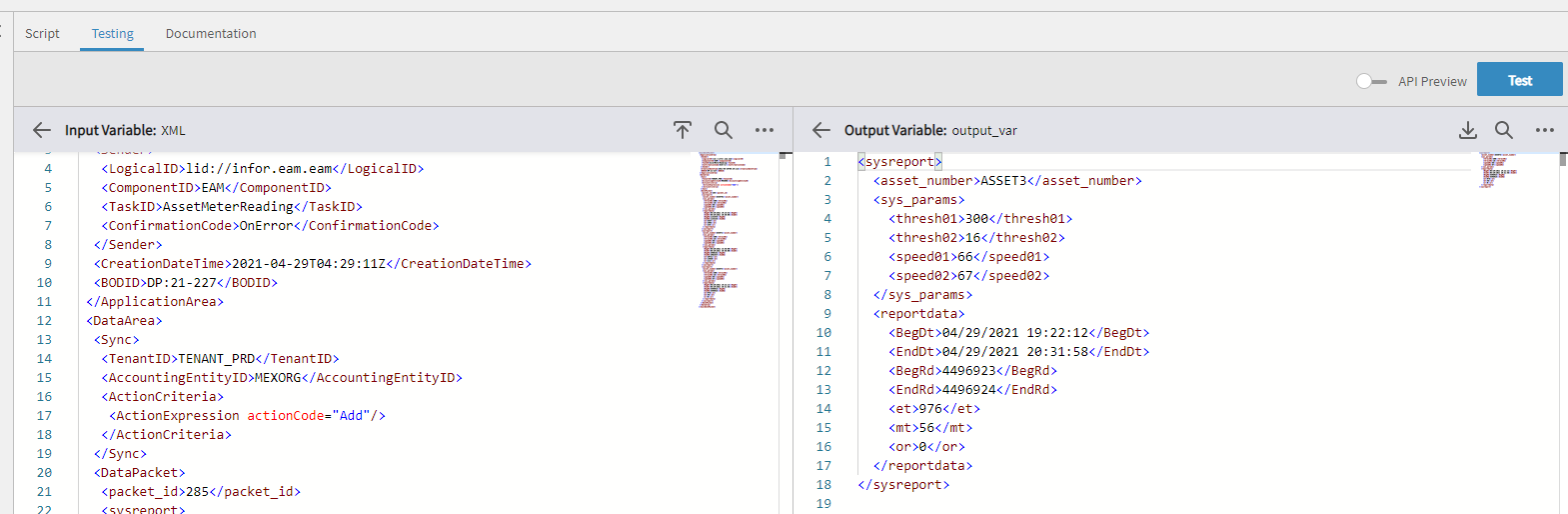

Desire Post-Script BOD.

Sample Pre-Script BOD with multiple reportdata for asset.

<?xml version="1.0" encoding="UTF-8"?>
<SyncDataPacket xmlns="http://schema.infor.com/InforOAGIS/2" languageCode="en-US" releaseID="9.2" systemEnvironmentCode="Production" versionID="2.8.0">
<ApplicationArea>
  <Sender>
   <LogicalID>lid://infor.eam.eam</LogicalID>
   <ComponentID>EAM</ComponentID>
   <TaskID>AssetMeterReading</TaskID>
   <ConfirmationCode>OnError</ConfirmationCode>
  </Sender>
  <CreationDateTime>2021-04-29T04:29:11Z</CreationDateTime>
  <BODID>DP:21-227</BODID>
</ApplicationArea>
<DataArea>
  <Sync>
   <TenantID>TENANT_PRD</TenantID>
   <AccountingEntityID>MEXORG</AccountingEntityID>
   <ActionCriteria>
    <ActionExpression actionCode="Add"/>
   </ActionCriteria>
  </Sync>
  <DataPacket>
   <packet_id>285</packet_id>
   <sysreport>
    <asset_number>ASSET01</asset_number>
    <sys_params>
     <thresh01>300</thresh01>
     <thresh02>16</thresh02>
     <speed01>66</speed01>
     <speed02>67</speed02>
    </sys_params>
    <reportdata>
     <BegDt>04/29/2021 16:35:48</BegDt>
     <EndDt>04/29/2021 18:49:20</EndDt>
     <BegRd>1141269</BegRd>
     <EndRd>1142501</EndRd>
     <et>8013</et>
     <mt>7038</mt>
     <or>247</or>
    </reportdata>
    <reportdata>
     <BegDt>04/29/2021 18:49:20</BegDt>
     <EndDt>04/29/2021 19:09:38</EndDt>
     <BegRd>1142501</BegRd>
     <EndRd>1142502</EndRd>
     <et>1218</et>
     <mt>43</mt>
     <or>0</or>
    </reportdata>
    <reportdata>
     <BegDt>04/29/2021 19:09:38</BegDt>
     <EndDt>04/29/2021 19:10:08</EndDt>
     <BegRd>1142502</BegRd>
     <EndRd>1142502</EndRd>
     <et>30</et>
     <mt>7</mt>
     <or>0</or>
     <os>0</os>
    </reportdata>
    <reportdata>
     <BegDt>04/29/2021 19:10:08</BegDt>
     <EndDt>04/29/2021 19:15:40</EndDt>
     <BegRd>1142502</BegRd>
     <EndRd>1142543</EndRd>
     <et>332</et>
     <mt>330</mt>
     <or>4</or>
    </reportdata>
    <reportdata>
     <BegDt>04/29/2021 19:15:40</BegDt>
     <EndDt>04/29/2021 19:15:42</EndDt>
     <BegRd>1142543</BegRd>
     <EndRd>1142544</EndRd>
     <et>2</et>
     <mt>2</mt>
     <or>0</or>
    </reportdata>
    <reportdata>
     <BegDt>04/29/2021 19:15:42</BegDt>
     <EndDt>04/29/2021 20:30:00</EndDt>
     <BegRd>1142544</BegRd>
     <EndRd>1143234</EndRd>
     <et>4457</et>
     <mt>3904</mt>
     <or>245</or>
    </reportdata>
   </sysreport>
   <sysreport>
    <asset_number>ASSET2</asset_number>
    <sys_params>
     <thresh01>300</thresh01>
     <thresh02>16</thresh02>
     <speed01>66</speed01>
     <speed02>67</speed02>
    </sys_params>
    <reportdata>
     <BegDt>04/29/2021 14:48:00</BegDt>
     <EndDt>04/29/2021 20:48:00</EndDt>
     <BegRd>2980181</BegRd>
     <EndRd>2982537</EndRd>
     <et>20721</et>
     <mt>15030</mt>
     <or>111</or>
    </reportdata>
   </sysreport>
   <sysreport>
    <asset_number>ASSET3</asset_number>
    <sys_params>
     <thresh01>300</thresh01>
     <thresh02>16</thresh02>
     <speed01>66</speed01>
     <speed02>67</speed02>
    </sys_params>
    <reportdata>
     <BegDt>04/29/2021 17:00:00</BegDt>
     <EndDt>04/29/2021 19:22:12</EndDt>
     <BegRd>4496923</BegRd>
     <EndRd>4496923</EndRd>
     <et>147</et>
     <mt>0</mt>
     <or>0</or>
    </reportdata>
    <reportdata>
     <BegDt>04/29/2021 19:22:12</BegDt>
     <EndDt>04/29/2021 20:31:58</EndDt>
     <BegRd>4496923</BegRd>
     <EndRd>4496924</EndRd>
     <et>976</et>
     <mt>56</mt>
     <or>0</or>
    </reportdata>
   </sysreport>
  </DataPacket>
</DataArea>
</SyncDataPacket>

Find more posts tagged with

ION Mapper & Scripting

Accepted answers

Roy Es van

I think the namespace is in the way. Can you try to remove it manually in your test. If that works you can edit the script to remove the namespace first

All comments

Roy Es van

Download lxml library from https://pythonwheels.com/ and import it in the ion scripting library

then make a script like

from lxml import etree

root = etree.fromstring(XML)

elements = root.xpath('/SyncDataPacket/DataArea/DataPacket/sysreport[last()]')

output_var = "".join([etree.tostring(element, encoding="unicode", pretty_print=True) for element in elements])

Test it in the ion scripting tool

Legacy Contributor

Hello Roy,

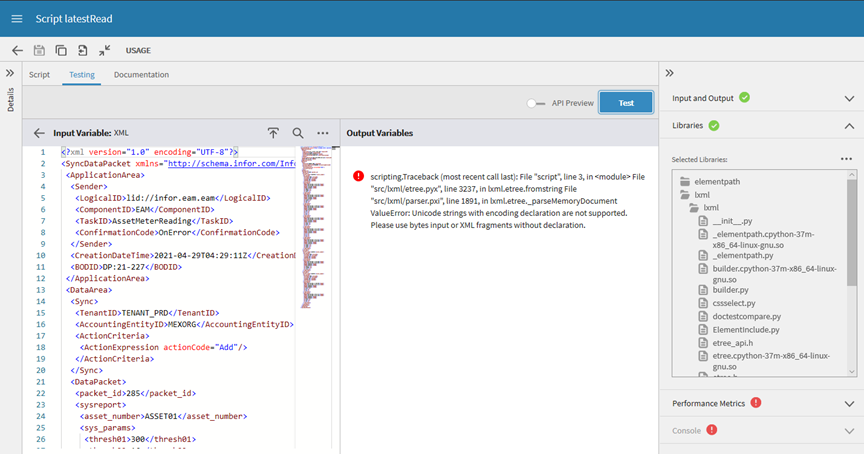

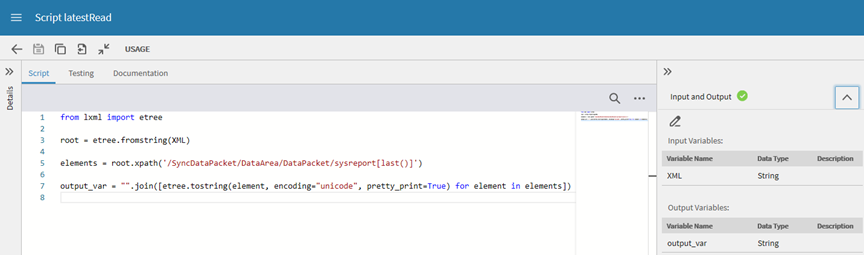

WOW!!! That is so Amazing! That is exactly the outcome I needed. Sorry, it took so long for me to respond. Since this is all so new to me, I spent the whole day trying to achieve what you have produced. But, I am getting an error message which I do not understand. I followed your instructions as best as I can. I downloaded the lxml library 4.6.3 for 3.7 and copied and pasted your sample code into the Script panel. I pasted my sample file onto the Input panel and tried the Test. Am I missing a step? Another library? Or, is my xpath incorrect? Are my Input/Output variables correct?

Thank you for your assistance.

Roy Es van

I think the namespace is in the way. Can you try to remove it manually in your test. If that works you can edit the script to remove the namespace first

Legacy Contributor

Thank you, once again, Roy.

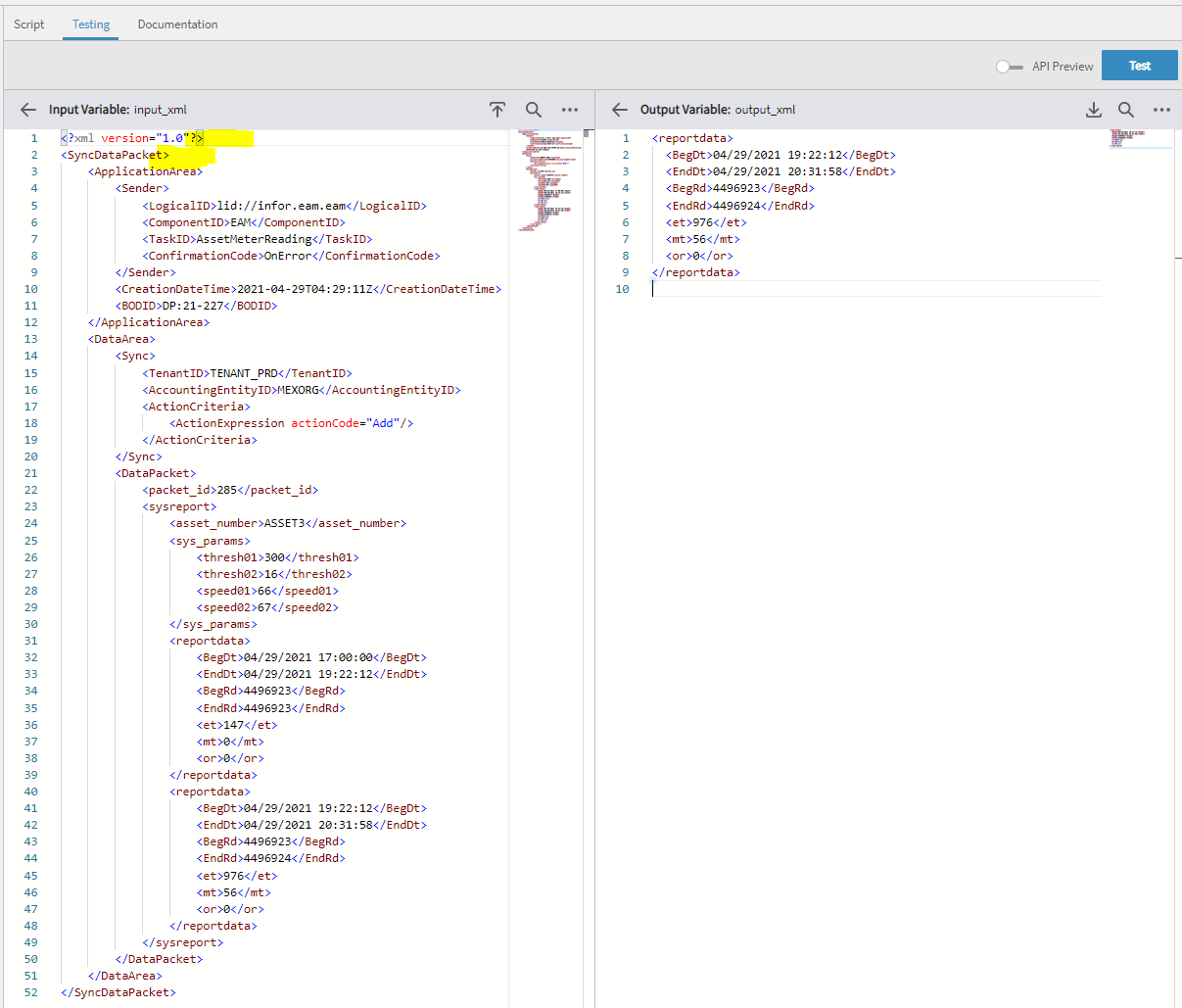

I took your advice and removed the namespace. Unfortunately, that did not work. However, I took it a bit further and removed the encoding="UTF-8", as well; and it worked; although not as good as your result with all the other elements still in tact. Now, I need to figure out how to build the BOD back with only the last reading element for that asset. It is kinda strange that the encoding="UTF-8" has to be removed when that is somewhat standard xml.

Thank you for all your guidance.
