Migrate LSO Mashup to H5 Mashup

Hello everybody

I'm trying to deploy an old mashup developped under LSO.

This mashup has a button that calls PPS200/F using bookmarks and let authorized people approve purchase orders with sign.

Once I deploy it as webmashup to be used under H5 everything is working almost fine except for the button the opens a blank tab instead of the PPS200/F panel.

I've understood this is due to bookmark format and the actual bookmark generated under LSO Mashup is this one:

mforms://bookmark?program=PPS200&tablename=MPHEAD&keys=IACONO%2c{0}%2cIAPUNO%2c{1}&option=2&panel=F&includestartpanel=false&panelsequence=F&focus=WAAUTD

if i tried it using CTRL+R inside H5 it doesn't work, but if I remove all amp; occurrencies then it works properly.

I've tried to modify it consequently under Mashup Designer but it throws me error.

I'm stucked in this point and have no ideas on how to create a workaround for this.

Any help would be appreciated.

Thanks

Giovanni

Find more posts tagged with

Accepted answers

All comments

Legacy Contributor

Hi Giovanni, I've used mforms in a few instances without error (using & not &) and copy/pasted your uri into a test mashup in our environment (13.4 Single-Tenant H5) and it ran without error. Is your PPS200 modified?

gleonardi

Hi Anthony and thank-you for your reply.

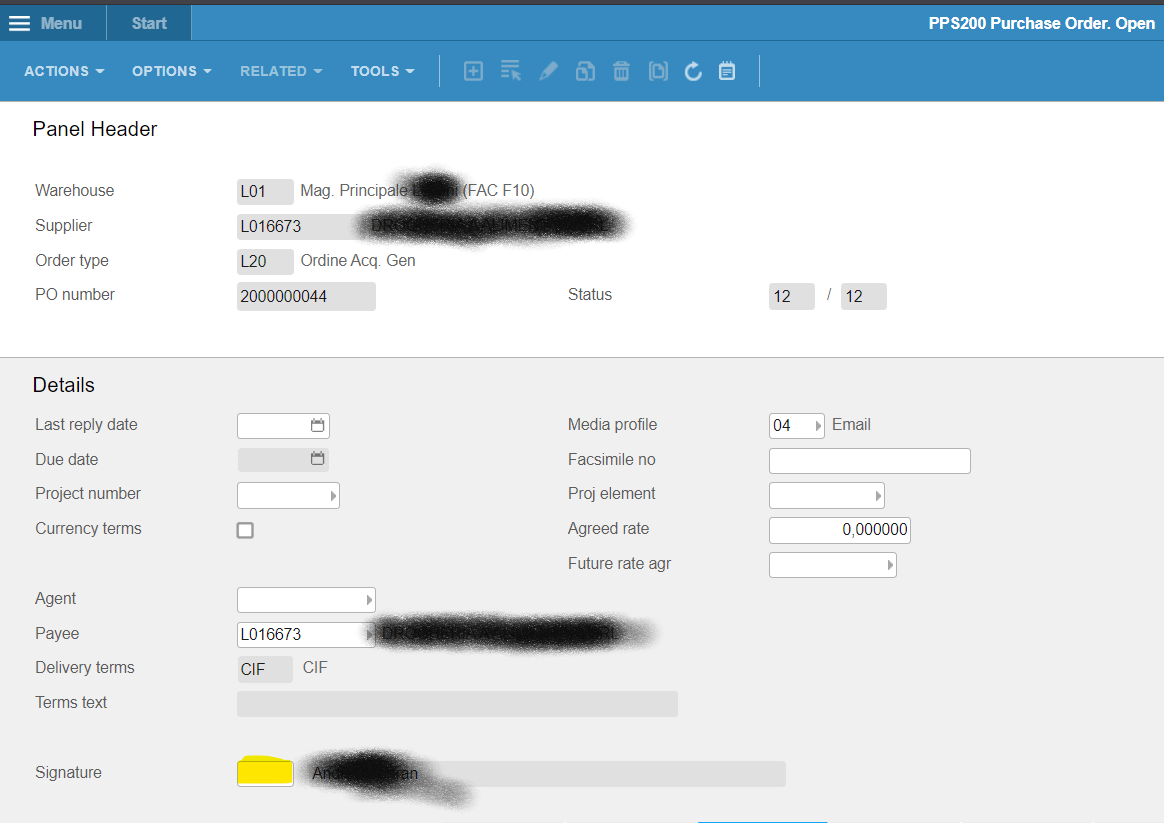

Did your test worked showing panel F with focus on field "Signature"?

Because I've already tried to launch it in cloud and on-prem and in both environment it opens PPS200 but lacks of all parameters like PUNO or option or anything else specified in the bookmark. All environment tested are on version 13.4 (BE 15.1.4) and none has modifications in PPS200. The only way to make it work is to remove all "amp;" occurrencies.

Is it something related to H5 setup?

Legacy Contributor

Hi!

Can you maybe try the format below?

mforms://bookmark?program=PPS200&panel=F&tableName=MPHEAD&source=Web&option=2&keys=IACONO%2C{0}%2CIAPUNO%2C{1}%2B%2B%2B&focus=WAAUTD

I don´t have access to a 13.4 at the moment, but this is the format you get when you create the bookmark in H5 in Cloud.

//Gunilla

Legacy Contributor

Hi Giovanni,

Hope you are well.

I have worked with Mashups quite closely in the past and have integrated them from LSO to H5 and then to Infor Cloud.

From my experience on the mashup designer in LSO when configuring the button there should be a text field where you can enter the URL of the link that you want to navigate to - have you tried entering the bookmark link from your original post replacing all "&" with just "&" and letting the designer encoding it.

Alternatively you could try creating the bookmark in H5 and comparing it to see if there are any differences.

Hope this helps

Qasim

gleonardi

Hi Qasim

I'm fine thank-you. Hope you are well too.

It was the first thing i've tried out, looking at H5 original bookmarks. This is how I realized that mashup's bookmarks were wrong for H5.

First of all I tried to populate the text field with exactely the same syntax of H5, but once I've saved it then mashup designer translated it into the URI I've posted.

There's no way to bypass this. And if i try to direclty modify the code removing all "amp;" text, designer throws a syntax error.

I'm looking for a workaround but unfortunately there is no api transaction that can update AUTD field on PO header, so my last chance is to configure a web service and simulate user activities on PPS200 but i'm not sure it can work properly.

It would be better to find a way to let bookmarks work inside H5 but it seems impossible.

If you can think to something else please tell me.

Many thanks

Giovanni

Legacy Contributor

Hi Giovanni

there is an API that will allow you to approve a PO.

PPS200MI_ApprovePO.

required fields - PUNO (PO number), AUTD (Signature)

We are currently running on Infor Cloud so you will need to check if this API is available on LSO/H5.

However below is a that I have developed for our environment that will take the user to Panel F and will focus on the Signature field. Essentially the link below will open PPS200, set the sorting order to 3, populate the PO Number and Facility, then will open the PO and set the focus to Signature. (our PPS200 has the panel sequence F1H)

mforms://_automation?data=%3c%3fxml+version%3d%221.0%22+encoding%3d%22utf-8%22%3f%3e%3csequence%3e%3cstep+command%3d%22RUN%22+value%3d%22PPS200%22+%2f%3e%3cstep+command%3d%22KEY%22+value%3d%22ENTER%22%3e%3cfield+name%3d%22WWQTTP%22%3e3%3c%2ffield%3e%3cfield+name%3d%22W2OBKV%22%3e{PUNO}%3c%2ffield%3e%3cfield+name%3d%22WFSLCT%22%3e%3c%2ffield%3e%3cfield+name%3d%22WTSLCT%22%3e%3c%2ffield%3e%3cfield+name%3d%22W1OBKV%22%3e{FACI}%3c%2ffield%3e%3c%2fstep%3e%3cstep+command%3d%22LSTOPT%22+value%3d%222%22+%2f%3e%3cstep+command%3d%22AUTOSET%22%3e%3cfield+name%3d%22FCS%22%3eWAAUTD%3c%2ffield%3e%3c%2fstep%3e%3c%2fsequence%3e

hope this helps.

Kind regards,

Qasim

gleonardi

Hi Qasim

Thank-you so much for your tips.

Unfortunately ApprovePO transaction exists only in cloud environment. In case i should ask Infor to release a downgrade for On-Prem env, but i think this can last too much time.

For mforms automation link, I already made an attempt last week but it was unsuccessful.

I tried with yours but it doesn't open the F panel. It stops on B panel selecting correct sorting order but any of the input fields are filled in. To test it inside H5 I have replaced {PUNO} and {FACI} with fixed values of my environment but it didn't work

Am I missing something?

Regards

Giovanni

Legacy Contributor

Hi @gleonardi ,

Please try the following format?

mforms://bookmark?program=PPS200&tablename=MPHEAD&startpanel=F&includestartpanel=True&requirepanel=True&suppressconfirm=False&source=MForms&keys=IACONO%2c{0}%2cIAPUNO%2c{1}&option=2&panel=F&includestartpanel=false&panelsequence=F&focus=WAAUTD
