Application Area is null

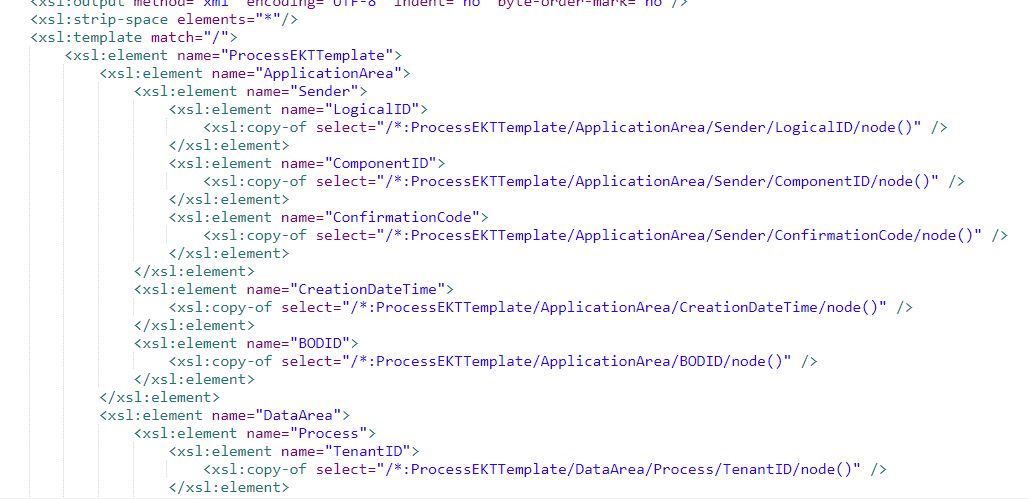

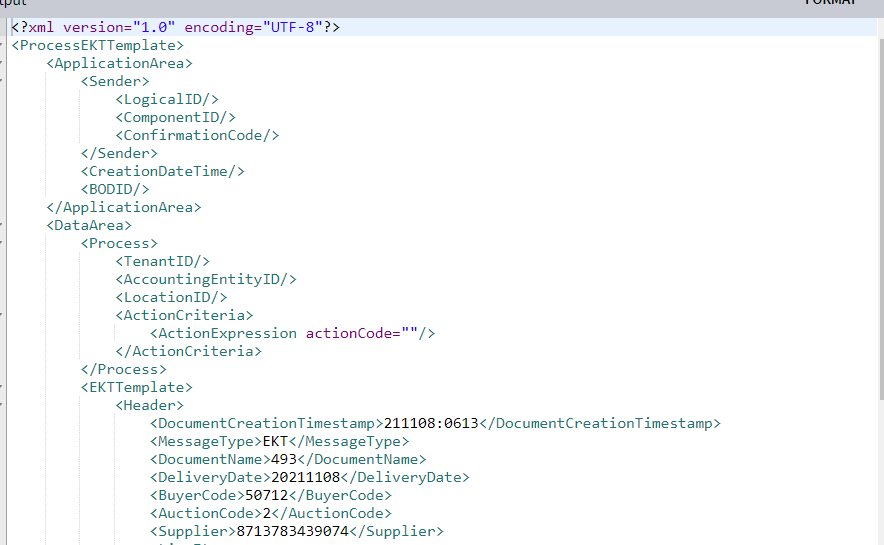

I Have ION Mapper it`s input XML like this

</Header>

but the result in oneview gets the Application area null as shown , i don`t know what the missing in the XSLT to get these values

Find more posts tagged with

ION Connect

Accepted answers

All comments

Maxime Richard

Hi Lamis,

You should create a file template to embedd this XML file into a Process BOD. ION will take care of "ApplicationArea".

The "Process" area may be blank; you need to hard-code your accounting entity as a property (in your mapper if you are in the cloud).

Legacy Contributor

ION seems to like two things: XML and ION structured BODs. Here is some sample XSL to use in the XSLT Editor to build the structure ION expects:

<?xml version="1.0" encoding="UTF-8"?>
<xsl:stylesheet version="2.0" xmlns="">schema.infor.com/.../2" xmlns:expath-zip="">http://expath.org/ns/zip" xmlns:fn="">www.w3.org/.../xpath-functions" xmlns:dns="">schema.infor.com/.../2" xmlns:saxon="">http://saxon.sf.net/" xmlns:expath-file="">http://expath.org/ns/file" xmlns:xsi="">www.w3.org/.../XMLSchema-instance" xmlns:xsl="">www.w3.org/.../Transform" xmlns:exslt-random="">http://exslt.org/random" xmlns:exslt-common="">http://exslt.org/common" xmlns:exslt-math="">http://exslt.org/math" xmlns:xs="">www.w3.org/.../XMLSchema" xmlns:math="">www.w3.org/.../math" xmlns:map="">www.w3.org/.../map" exclude-result-prefixes="xs xsl fn expath-file expath-zip exslt-common exslt-math exslt-random map math saxon xsi ">
<xsl:output method="xml" encoding="UTF-8" indent="no" byte-order-mark="no"/>
<xsl:strip-space elements="*"/>
<xsl:template match="/">
<xsl:element name="SyncAuguryMachineHealthXMLRaw">
<xsl:element name="DataArea">
<xsl:element name="AuguryMachineHealthXMLRaw">
<xsl:copy-of select="/*:root/*:data" />
</xsl:element>
</xsl:element>
</xsl:element>
</xsl:template>
</xsl:stylesheet>

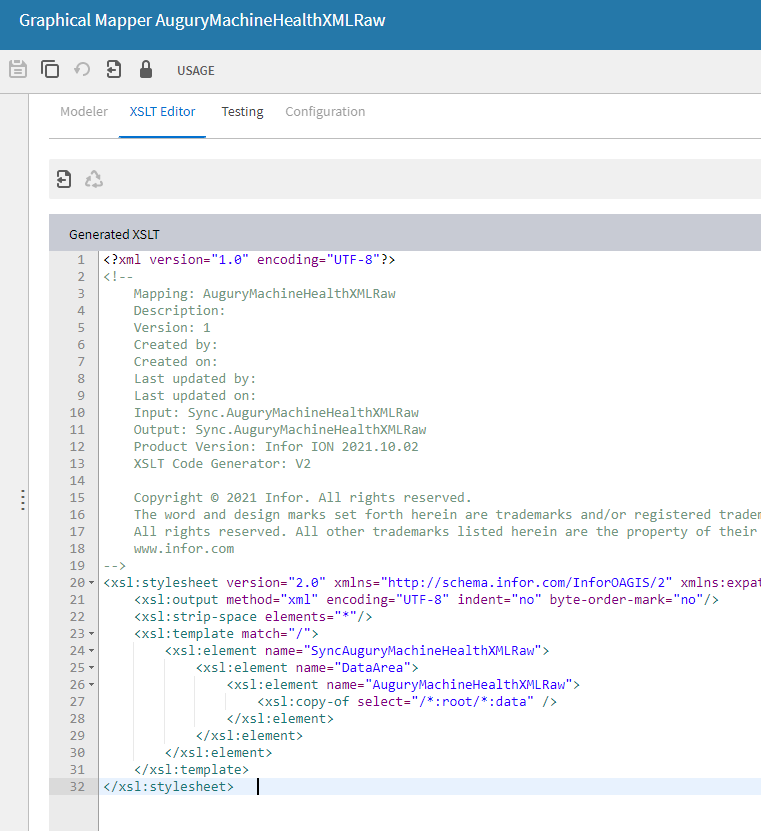

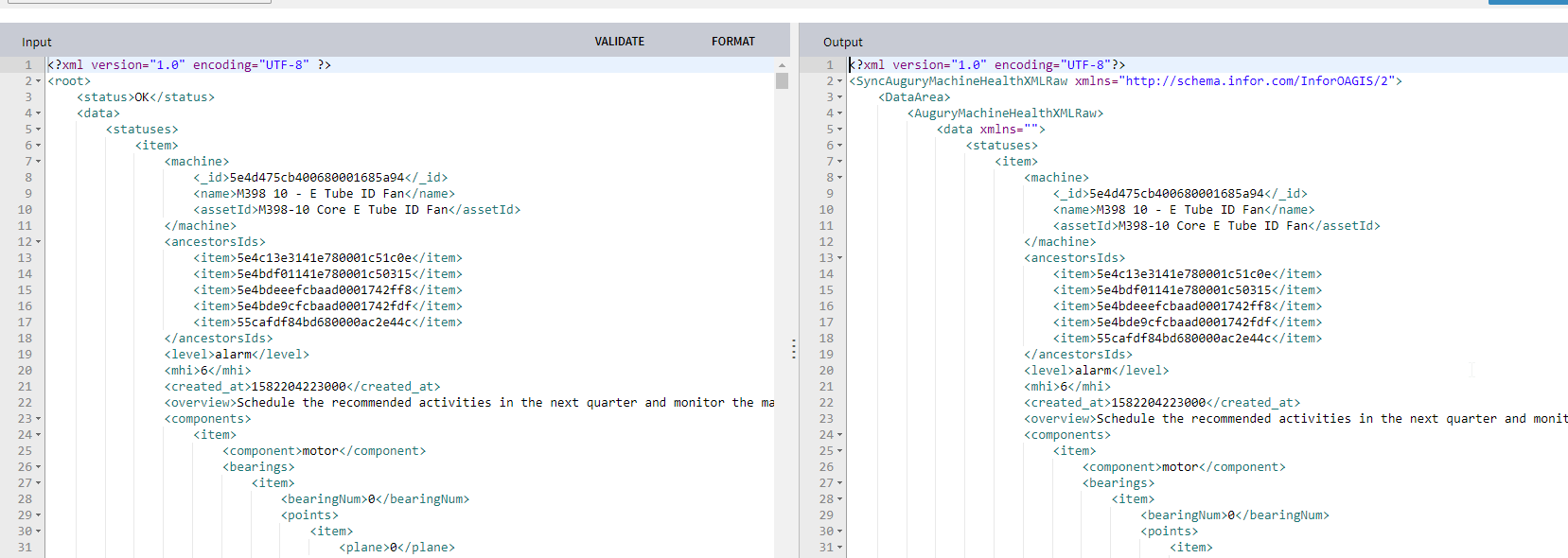

If you're not familiar with XSL, just know your goal is to build the mapping to resemble what your desired XML structure while using "select" to pull in data from the source node. Here are some screens showing the mapping code and before/after testing:

Lamis Alaa

I cannot create file template here , my document flow send text file from application then I implement script (scripting tool in ION) to convert that text to xml then using the ION mapper and send it to M3
so it is from APP to APP

these are my steps

Maxime Richard

OK. Then you can send directly the text file to IEC through the new IMS channel. The file must be of type ANY to make it work. Design a flat file definition in the mapper and call your mapping. Should work.
