Workflow OCR - Process.SupplierInvoice error 401 Unauthorized - SX On prem & Infor OS CSD

Hi,

We tried to create a workflow with OCR (Ephesoft), using the process.SupplierInvoice and we have an error (Unauthorized).

Our SX is ON Prem and Infor OS is CSD. Currently, we are able to do Outbound workflows... but it's the first time we try to do an Inbound workflow.

When we test the connection point, (SXIMS), we have no error and the Process.SupplierInvoice is in the document list.

Does someone know how I can validate the BODID tag? This is my current value but I'm not sure if this is good:

<BODID>infor-nid:infor:10:10:10-TEST#10:?SupplierInvoice&verb=Process&event=13230 </BODID>

Find more posts tagged with

ION Connect

Accepted answers

All comments

andy

I'm not sure about validating the BOD ID tag, but does your service user associated with the ION API backend service have the requisite IDM roles?

unknown

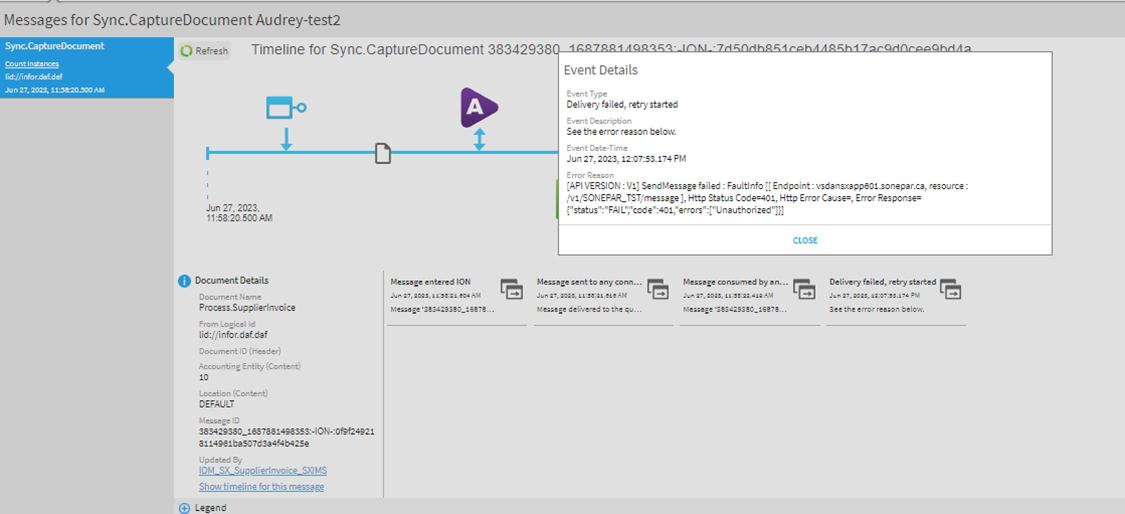

yes I have the IDM roles (my user have all the admin roles)... I'm able to received the BOD (Sync.CaptureDocument), to do the mapping (convert to Process.SupplierInvoice), but when the BOD is send to SX to process it, I have this error message.

Brandon Watson

Hello Audrey - Does your SXIMS Connection Point have matching values to the SASAPI IMSInbound entry? The Oauth Consumer Key and Secret, that you enter in IMS Endpoint, needs to match the SASAPI Consumer Key and Secret.

Below is an example Process.SupplierInvoice BODID, from my environment. You may need to adjust yours.

<BODID>infor-nid:infor:DEFAULT::1~0:?SupplierInvoice&amp;verb=Process</BODID>

unknown

Thank you very much... unfortunately; it didnt work. (with the BODID).

for the IMS endpoint, we do have the configuration with OAuth consumer key

unknown

Hi Brandon, just to make sure that the OAuth consumer Secret key are the same... do you think that I should recreate it, assign the new key in both places and tests again?

Kevin Heiman

What shows in the API Gateway Monitoring.

Can you provide a little more clarity on the Flow/ connection points/ in scope. I read this as MT OS is attempting to send to On Premise SX using IMS? Is that via Enterprise Connector?

Can you test the connection in Postman?

can you paint that picture?

Brandon Watson

Absolutely! I very often recreate those, when I am not 100% sure it is accurate.

Also, do you see any errors in ETCC or SAABIOI for these BODs?
